Product Information
Description

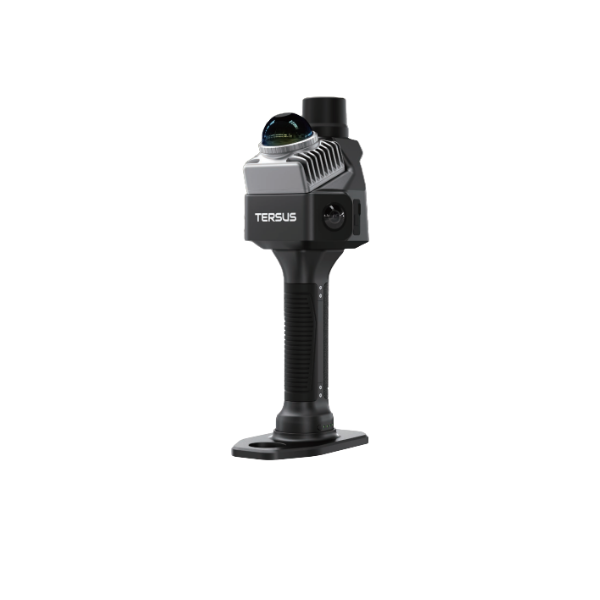

The Tersus GNSS MVP S1 is an ultra-lightweight handheld LiDAR SLAM system designed for fast and accurate 3D mapping of both indoor and outdoor environments. Its key differentiating feature is the integration of RTK GNSS and LiDAR-Inertial SLAM within a single system. In open environments, RTK provides direct georeferencing, while in areas with limited or unavailable GNSS coverage, SLAM maintains continuous and reliable data acquisition.
With a total weight of just 982 g, the MVP S1 can be comfortably operated by a single user and captures up to 200,000 points per second, with a 360° horizontal field of view and a range of up to 70 m. Its processed relative accuracy is better than 1 cm, while the two 48 MP fisheye cameras provide high-quality point cloud colorization, panoramic imaging, and support for the creation of 3D Gaussian Splatting (3DGS) models.
Integration with MVP Studio provides a complete workflow, from data acquisition and processing to quality control and the production of final CAD/GIS deliverables.
Key Features
- Weight: only 982 g
- Integrated RTK + LiDAR SLAM
- Relative accuracy: < 1 cm
- Up to 200,000 points/second
- Range: up to 70 m
- 2 × 48 MP cameras with 3DGS support
